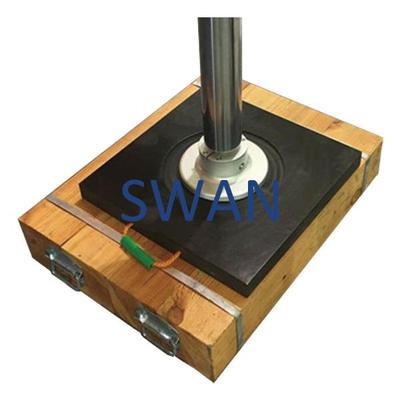

Outrigger Pad is mainly used for supporting the legs of construction machinery. With higher strength and rigidity, the deformation of the pad body can be reduced, providing more stable supporting force for the construction machinery. It greatly saves the cost and improves the quality of work.
Benefits
1. Do not absorb moisture and will not swell upover time due to exposure outdoors.
2. Good impact intensity, do not decrease theimpact strength over time.
3. Good breaking elongation, so they will bendbut not break under extreme loads.
4. Non-stick surface, easy to clean.
5. Corrosion and chemical resistant.
6. Can work in bad weather conditions.
7. Durable lasting, low cost and and efficientworking compared to steel or aluminum.
8. Amazingly light compared to steel pads, andeasier to mount and replace.
9. Will not rot, crack, splinter, much safer touse in the field compared to other wood based pads.
10. Lower maintenance cost.
11. Storege-Friendly.
Type
Smooth; Friction
Example
Thickness(inch) | Pad Size(inch) | Part Number | 40°Load | Vertical Load | Pad Weight |
1’’ Square | 18x18 | X1T1818 | 14 tonnes | 25 tonnes | 5.00kgs |
1’’ Rectangle | 20x24 | X1T2024 | 16 tonnes | 27 tonnes | 7.63kgs |
1’’ Square | 24x24 | X1T2424 | 16 Tonees | 34 tonnes | 9.15kgs |
1’’ Square | 30x30 | X1T3030 | 18 tonnes | 36 tonnes | 14.3kgs |
1’’ Square | 36x36 | X1T3636 | 19 tonnes | 42 tonnes | 20.6kgs |
1’’ Square | 48x48 | X1T4848 | 22.5 tonnes | 59 tonnes | 36.62kgs |
1’’ Round | 30’’ Dia | X1TR30 | 12 tonnes | 28 tonnes | 11.23kgs |
1’’ Round | 36’’ Dia | X1TR36 | 15 tonnes | 32 tonnes | 16.16kgs |
1’’ Round | 48’’ Dia | X1TR48 | 18 tonnes | 45 tonnes | 28.75kgs |
