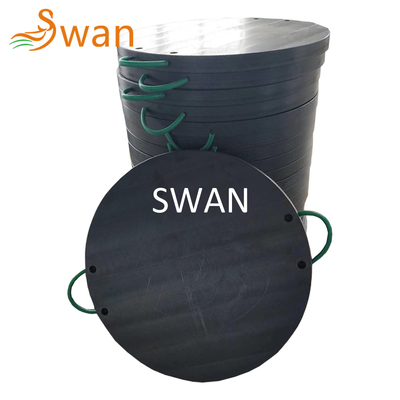

Engineered plastic cribbing plates and outrigger pads are light weight, strong, and solid designed to support your crane, and can be easily handled and positioned by one person or two. It can be warped like wood or corroded like steel. It won’t break in the long guaranteed time and obviously couold not attract thieves.
UHMWPE outrigger pads can be used not only as crane leg pads, but also the trailer plates, sleeper of heavy machinery track mats of heavy truck. The multi-function makes our outrigger pads popular in the world market, because we can produce all the outrigger pads according to customers' reasonable ideas.
Benefits
1. Do not absorb moisture and will not swell upover time due to exposure outdoors.
2. Good impact intensity, do not decrease theimpact strength over time.
3. Good breaking elongation, so they will bendbut not break under extreme loads.
4. Non-stick surface, easy to clean.
5. Corrosion and chemical resistant.
6. Can work in bad weather conditions.
7. Durable lasting, low cost and and efficientworking compared to steel or aluminum.
8. Amazingly light compared to steel pads, andeasier to mount and replace.
9. Will not rot, crack, splinter, much safer touse in the field compared to other wood based pads.
10. Lower maintenance cost.
11. Storege-Friendly.
Type
Smooth; Friction
Example
Thickness(inch) | Pad Size(inch) | Part Number | 40°Load | Vertical Load | Pad Weight |
1’’ Square | 18x18 | X1T1818 | 14 tonnes | 25 tonnes | 5.00kgs |
1’’ Rectangle | 20x24 | X1T2024 | 16 tonnes | 27 tonnes | 7.63kgs |
1’’ Square | 24x24 | X1T2424 | 16 Tonees | 34 tonnes | 9.15kgs |
1’’ Square | 30x30 | X1T3030 | 18 tonnes | 36 tonnes | 14.3kgs |
1’’ Square | 36x36 | X1T3636 | 19 tonnes | 42 tonnes | 20.6kgs |
1’’ Square | 48x48 | X1T4848 | 22.5 tonnes | 59 tonnes | 36.62kgs |
1’’ Round | 30’’ Dia | X1TR30 | 12 tonnes | 28 tonnes | 11.23kgs |
1’’ Round | 36’’ Dia | X1TR36 | 15 tonnes | 32 tonnes | 16.16kgs |
|
|
|
|
|
|
